Glass Straight-Line Pencil/Flat/OG Edging Machine

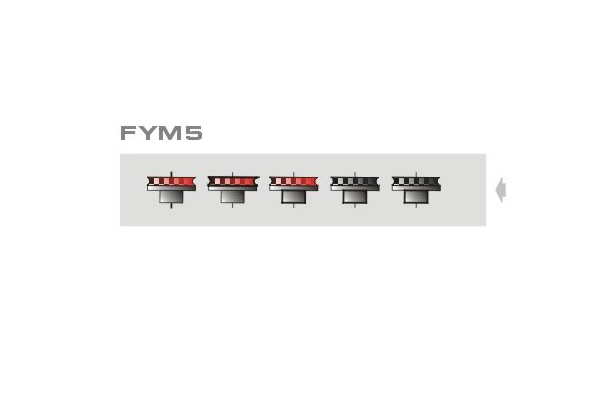

FYM5

Series FYM5 glass straight-line pencil/flat/OG edging machine is suitable for processing straight-line edge, round edge and OG edge of glass sheet with the thickness of 3~20mm.

Technical Parameter

Type Min. Glass Size Glass thickness Speed
mm mm m/min
FYM5 150x150 3~20 1.0~5.0

FYM7

Series FYM7 glass straight-line pencil edging machine adopts chain drive and stepless adjustable-speed motor, which is suitable for processing straight-line edge, round edge and OG edge of glass sheet with the thickness of 3~20mm.

Technical Parameter

Type Min. Glass Size Glass thickness Speed
mm mm m/min
FYM7 150x150 3~20 1.0~5.0

YM7

Series YM7 glass straight-line pencil/flat/OG edging machine is used to process glasses (minimum size: 65x65mm, thickness: 3~25mm) with the speed of 0.6~4.4m/min.

Features

1. The machine adopts box-type beam structure and round guide which is 10 times as long as the general type for the service life.
2. Transmission without chain not only decrease traction but also make the operation more steady by turning sliding friction into friction between bearing and guide rail.
3. PLC control system and Nixie tube make it more convenient and reliable.
4. Series YM7 glass straight-line pencil edging machine is equipped with advanced protection system and reasonable lubrication system.

Technical Parameter

Type Min. Glass Size Glass thickness Speed
mm mm m/min
YM7 65x65 3~25 0.6~4.4
